Technical Specifications
Detailed specifications of our transformers across different capacities.

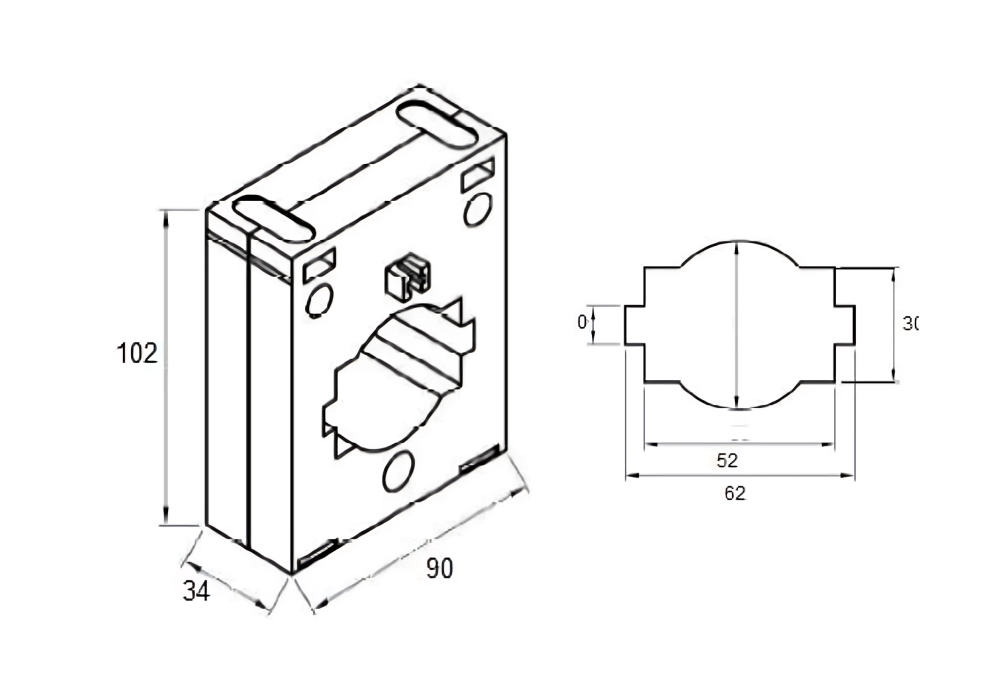

| CODE | RATIO (Amp) | CLASS | 2.5 VA | 5 VA | 10 VA | 15 VA | 30 VA | A (In mm) | B (In mm) | C (In mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| AE0100 | 400/5 | CLASS | 0.5/1 | 0.5/1 | 1 | - | - | 135 | 160 | 42 |
| AE0100 | 500/5 | CLASS | 0.5/1 | 0.5/1 | 1 | - | - | 135 | 160 | 42 |
| AE0100 | 600/5 | CLASS | 0.5/1 | 0.5/1 | 1 | - | - | 135 | 160 | 42 |
| AE0100 | 800/5 | CLASS | 0.5/1 | 0.5/1 | 0.5/1 | 1 | - | 135 | 160 | 42 |
| AE0100 | 1000/5 | CLASS | 0.5/1 | 0.5/1 | 0.5/1 | 1 | - | 135 | 160 | 42 |
| AE0100 | 1250/5 | CLASS | 0.5/1 | 0.5/1 | 0.5/1 | 0.5/1 | - | 135 | 160 | 42 |
| AE0100 | 1600/5 | CLASS | 0.5/1 | 0.5/1 | 0.5/1 | 0.5/1 | - | 135 | 160 | 42 |
| AE0100 | 2000/5 | CLASS | 0.5/1 | 0.5/1 | 0.5/1 | 0.5/1 | 1 | 135 | 160 | 42 |
| AE0100 | 2500/5 | CLASS | 0.5/1 | 0.5/1 | 0.5/1 | 0.5/1 | 1 | 135 | 160 | 42 |
| AE0100 | 3000/5 | CLASS | 0.5/1 | 0.5/1 | 0.5/1 | 0.5/1 | 0.5/1 | 135 | 160 | 42 |
| AE0100 | 3200/5 | CLASS | 0.5/1 | 0.5/1 | 0.5/1 | 0.5/1 | 0.5/1 | 135 | 160 | 42 |
| AE0100 | 4000/5 | CLASS | 0.5/1 | 0.5/1 | 0.5/1 | 0.5/1 | 0.5/1 | 135 | 160 | 42 |
The AE100 Nylon/ABS Current Transformer (CT) is a moulded case, low-voltage CT designed for accurate current measurement in metering and protection systems. It is manufactured using a Nylon/ABS housing.This makes the AE100 suitable for indoor applications in panels, switchgear, and industrial energy monitoring setups.
Key Features
Nylon / ABS CT AE100
Explore the performance and design highlights of AE100 Current Transformer
Extended Current Range
Supports primary currents from 400/5A up to 4000/5A, making it suitable for medium and large-scale applications.
Precision Accuracy
Available in Class 0.5 & 1 with burdens up to 30 VA, ensuring reliability for both metering and protection.
Robust Construction
Built with strong Nylon / ABS housing, offering flame resistance, mechanical durability, and long service life.
asked question
Have questions about CT AE100?
Find answers to the most commonly asked questions about Nylon / ABS Current Transformers (CT), their applications, and performance benefits.
The Nylon / ABS CT AE100 is a moulded low-voltage current transformer designed for precise current measurement and protection. It features a strong Nylon / ABS housing that ensures flame resistance, mechanical durability, and reliable insulation performance for industrial applications.
AE100 supports primary current ranges from 400/5A up to 4000/5A, with Class 0.5 or Class 1 accuracy ratings and burdens from 2.5VA to 30VA. Its Nylon / ABS body provides excellent thermal stability, impact resistance, and long service life.
AE100 is commonly used in energy metering, switchgear, control panels, MCCs, and power monitoring systems. It provides accurate current measurement for both metering and protection in commercial and industrial environments.
AE100 ensures high accuracy, enhances electrical safety, reduces overheating risks, and supports efficient energy monitoring. Its robust Nylon / ABS construction guarantees consistent performance even under demanding operating conditions.
Yes, AE100 current transformers can be customized with different primary current ratings, accuracy classes, and mounting options to suit a wide range of applications.
