Technical Specifications
Detailed specifications of our transformers across different capacities.

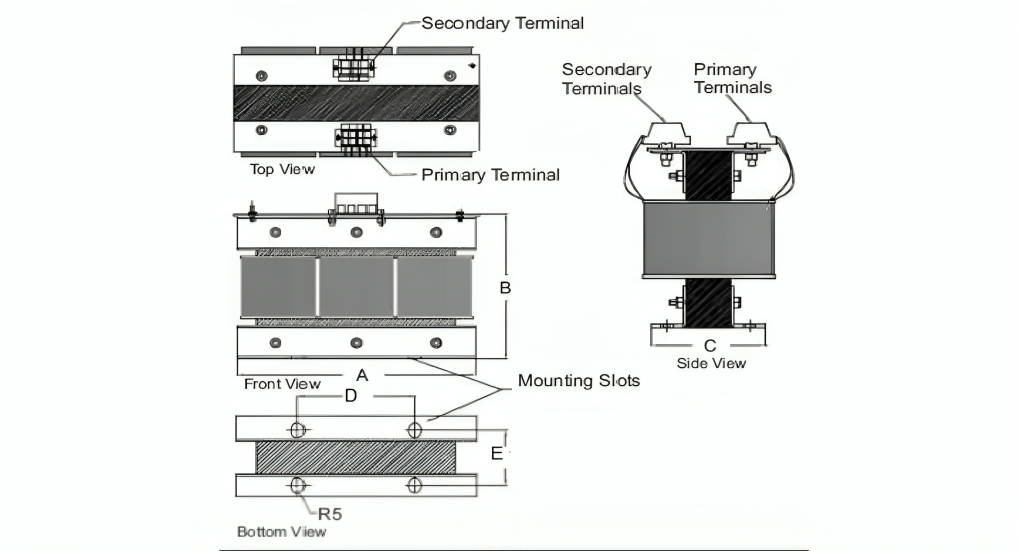

| Sr. No | Capacity (KW) | Amp | mH | A (mm) | C (mm) | B (mm) |
|---|---|---|---|---|---|---|
| 1 | 0.4 | 2 | 18 | 150 | 80 | 150 |
| 2 | 0.75 | 2.5 | 8.4 | 150 | 85 | 150 |
| 3 | 1.5 | 5 | 4.2 | 150 | 110 | 150 |
| 4 | 2.2 | 7.5 | 3.2 | 150 | 115 | 150 |
| 5 | 3.7 | 10 | 2.2 | 150 | 125 | 150 |
| 6 | 5.5 | 15 | 1.42 | 150 | 135 | 150 |
| 7 | 7.5 | 20 | 1.06 | 190 | 120 | 170 |
| 8 | 11 | 30 | 0.7 | 190 | 135 | 170 |
| 9 | 15 | 40 | 0.53 | 190 | 150 | 170 |
| 10 | 18.5 | 50 | 0.42 | 260 | 130 | 210 |
| 11 | 22 | 60 | 0.36 | 260 | 150 | 210 |
| 12 | 30 | 80 | 0.26 | 330 | 160 | 260 |
| 13 | 37 | 90 | 0.24 | 330 | 175 | 260 |
| 14 | 45 | 120 | 0.18 | 330 | 185 | 260 |
| 15 | 55 | 150 | 0.15 | 330 | 190 | 260 |
| 16 | 75 | 200 | 0.11 | 330 | 210 | 260 |
| 17 | 90 | 220 | 0.105 | 330 | 210 | 260 |
| 18 | 110 | 260 | 0.09 | 330 | 230 | 260 |
| 19 | 160 | 350 | 0.058 | 330 | 265 | 260 |

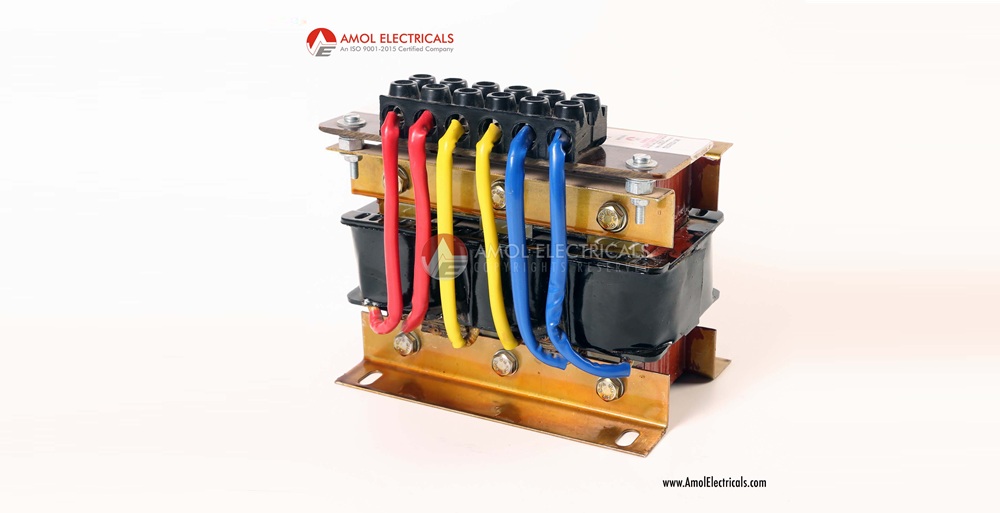

Our Line Chokes are designed to protect electrical equipment by reducing harmonics, improving power quality, and ensuring smoother current flow. They play a critical role in safeguarding drives, inverters, and other sensitive devices from voltage spikes and electrical noise. By minimizing disturbances, Line Chokes extend the lifespan of equipment and enhance overall system efficiency.
Built with high-grade materials and precision engineering, our Line Chokes deliver superior performance in both industrial and commercial applications. They provide effective mitigation of inrush currents, reduce motor heating, and improve the power factor of installations. With compact designs, robust construction, and customizable options, our Line Chokes are trusted for reliable and long-lasting protection in diverse electrical environments.
asked question
Have questions about Line Chokes?
Find answers to the most commonly asked questions about Line Chokes, their applications, and performance benefits.
A Line Choke helps reduce harmonics, voltage spikes, and electrical noise in power systems. It improves reliability and protects drives, motors, and other sensitive equipment.
They are widely used with variable frequency drives (VFDs), inverters, and power supplies in industrial plants, HVAC systems, and commercial installations.
They limit inrush currents, reduce motor heating, and smoothen current flow. This prevents premature failure of drives, transformers, and other electrical components.
Benefits include improved power factor, reduced harmonics, extended equipment life, and compliance with power quality standards in electrical systems.
Yes, Line Chokes can be tailored to meet application-specific requirements such as voltage rating, current capacity, and installation environment.
