Technical Specifications
Detailed specifications of our transformers across different capacities.

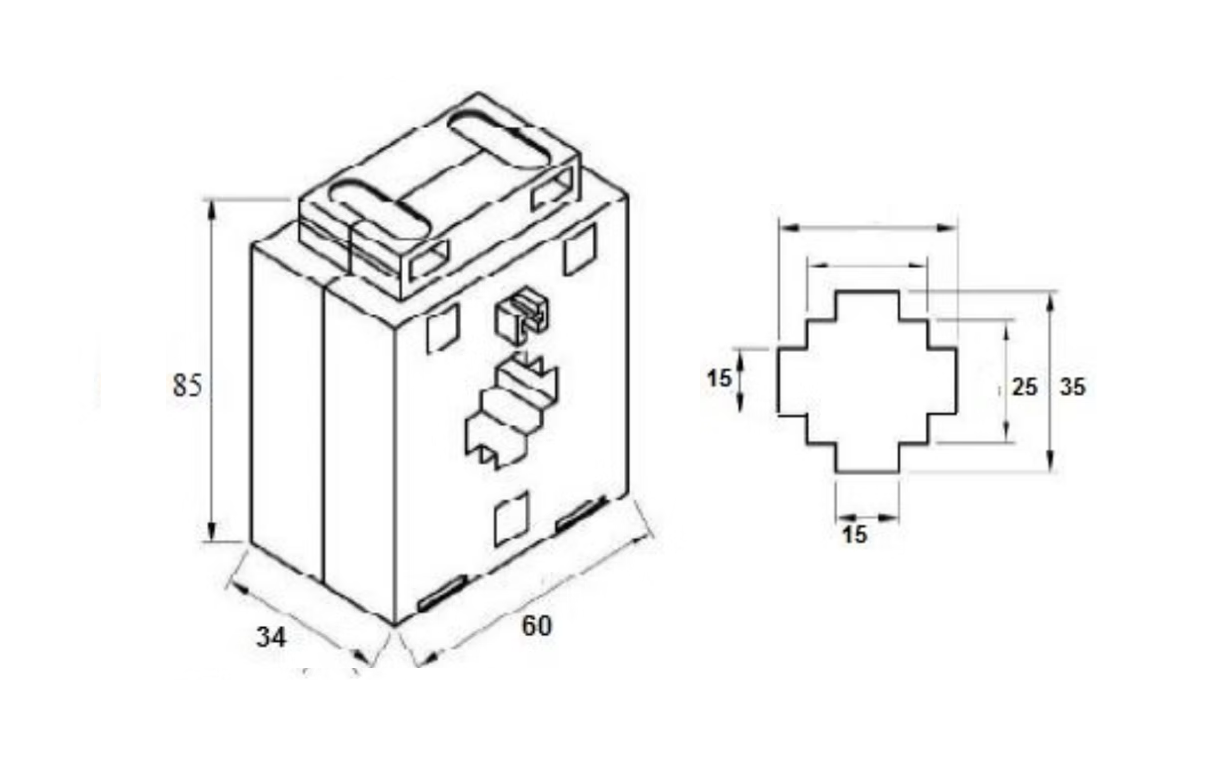

| CODE | RATIO (Amp) | CLASS | 2.5 VA | 5 VA | 7.5 VA | 10 VA | A (In mm) | B (In mm) | C (In mm) |
|---|---|---|---|---|---|---|---|---|---|
| AE030 | 100/5 | CLASS | 1 | - | - | - | 60 | 85 | 35 |
| AE030 | 150/5 | CLASS | 1 | - | - | - | 60 | 85 | 34 |
| AE030 | 160/5 | CLASS | 1 | - | - | - | 60 | 85 | 34 |
| AE030 | 200/5 | CLASS | 1 | 1 | - | - | 60 | 85 | 34 |
| AE030 | 250/5 | CLASS | 1 | 1 | - | - | 60 | 85 | 34 |
| AE030 | 300/5 | CLASS | 1/0.5 | 1 | - | - | 60 | 85 | 34 |
| AE030 | 400/5 | CLASS | 1/0.5 | 1/0.5 | 1 | - | 60 | 85 | 34 |
| AE030 | 500/5 | CLASS | 1/0.5 | 1/0.5 | 1 | 1 | 60 | 85 | 34 |
AE030 is a moulded current transformer (CT) used for accurate current measurement in low-voltage electrical circuits. It is typically made with Nylon / ABS (Acrylonitrile Butadiene Styrene) engineering plastics, which provide high mechanical strength, electrical insulation, and flame resistance.
asked question
Have questions about CT AE030?
Find answers to the most commonly asked questions about Nylon / ABS Current Transformers (CT), their applications, and performance benefits.
The Nylon / ABS CT AE030 is a moulded current transformer designed for precise current measurement in low-voltage electrical systems. It features a robust Nylon / ABS enclosure offering high mechanical strength, flame resistance, and electrical insulation.
It supports primary current ranges from 100/5A up to 500/5A, with Class 1 or Class 0.5 accuracy ratings and burdens of 2.5VA to 10VA. Its Nylon / ABS body ensures thermal stability, moisture protection, and excellent electrical insulation.
AE030 is commonly used in energy metering, industrial switchboards, control panels, MCCs, and power monitoring systems for accurate and reliable current measurement.
AE030 ensures high measurement accuracy, enhances system safety, reduces overheating risks, and contributes to accurate energy monitoring—helping improve equipment performance and lifespan.
Yes, the AE030 current transformer can be customized for various primary current ratings, accuracy classes, and mounting styles to match specific application requirements.
