Nylon / ABS CT AE020

Products

how can we help

If you need any helps, please feel free to contact us.

+91 98220 63016

+91 73852 22499

info@amolelectricals.com

Technical Specifications

Detailed specifications of our transformers across different capacities.

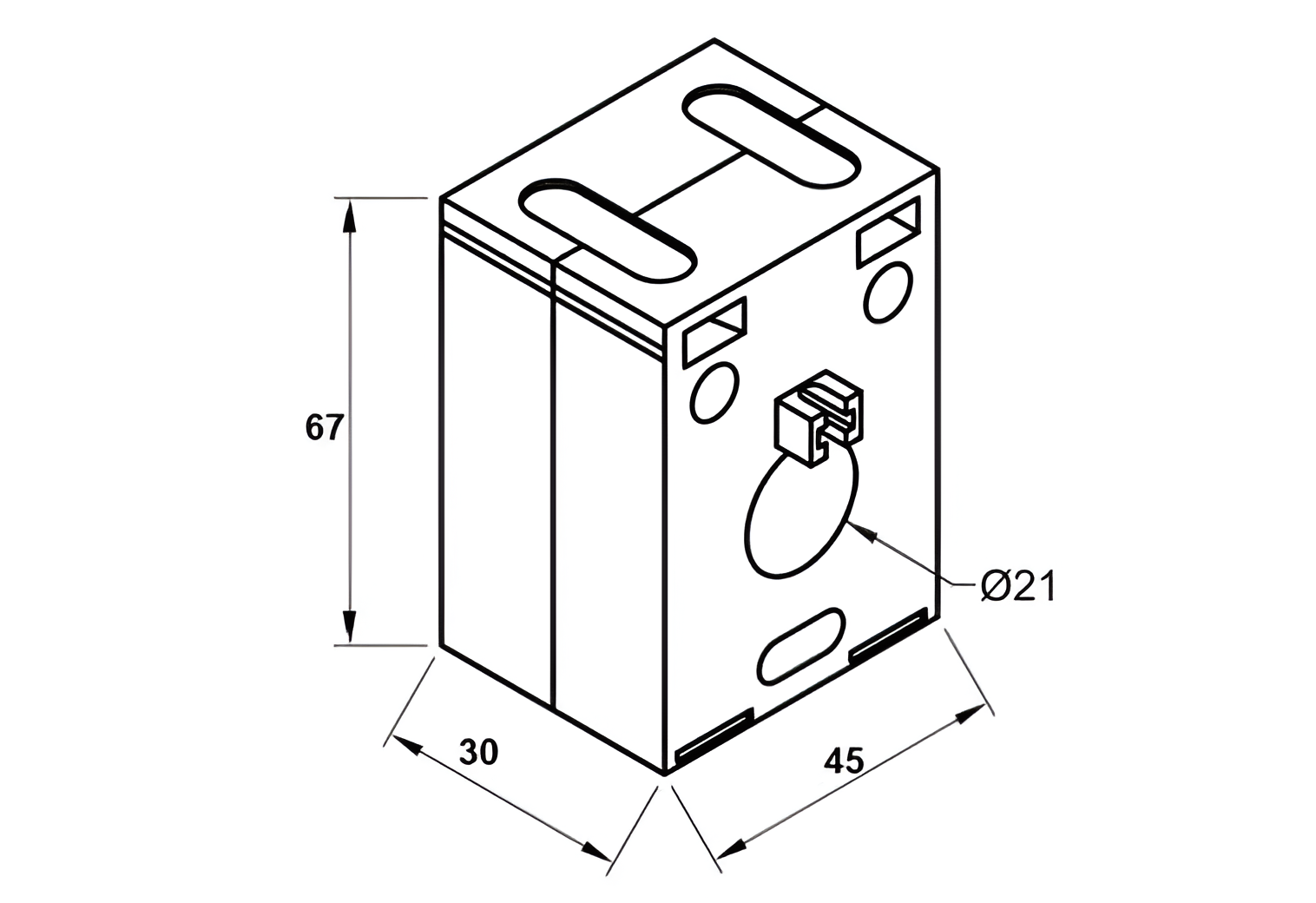

CODE RATIO (Amp) CLASS 1 VA 1.5 VA 2.5 VA A (mm) B (mm) C (mm) D (mm)
AE020 10/5 CLASS 1/3 3 - 21 45 67 30
AE020 15/5 CLASS 1/3 3 - 21 45 67 30
AE020 20/5 CLASS 1/3 3 - 21 45 67 30
AE020 25/5 CLASS 1/3 3 - 21 45 67 30
AE020 30/5 CLASS 1/3 3 - 21 45 67 30
AE020 40/5 CLASS 1/3 1/3 3 21 45 67 30
AE020 50/5 CLASS 1/3 3 - 21 45 67 30
AE020 60/5 CLASS 1/3 3 - 21 45 67 30
AE020 80/5 CLASS 1/3 1/3 3 21 45 67 30
AE020 100/5 CLASS 1/3 1/3 3 21 45 67 30
AE020 125/5 CLASS 1/3 1/3 3 21 45 67 30
AE020 150/5 CLASS 1/3 1/3 1/3 21 45 67 30
AE020 160/5 CLASS 1/3 1/3 1/3 21 45 67 30

The AE020 is a compact and reliable current transformer (CT) designed for accurate current measurement in low-voltage electrical systems. Built with a durable Nylon / ABS enclosure, it offers excellent mechanical strength, insulation, and fire resistance, making it suitable for industrial and commercial panel installations.

asked question

Have questions about CT AE020?

Find answers to the most commonly asked questions about Line Chokes, their applications, and performance benefits.

The Nylon / ABS CT AE020 is a compact current transformer designed to accurately measure current in low-voltage systems. It features a durable Nylon / ABS enclosure that provides high mechanical strength and electrical insulation.

It offers high electrical accuracy, Class 1 or Class 3 ratings, primary current ranges from 10/5A to 160/5A, and supports burdens of 1VA, 1.5VA, or 2.5VA. Its Nylon / ABS body ensures flame resistance, thermal stability, and moisture protection.

AE020 is commonly used in energy metering, monitoring systems, control panels, switchgear, and industrial automation setups to measure current accurately and safely.

It ensures reliable current measurement, improves system safety, reduces risks of overheating, and contributes to accurate energy monitoring, enhancing overall equipment lifespan.

Yes, the AE020 current transformer can be customized for various primary current ratings, accuracy classes, and mounting styles to suit different application requirements.
